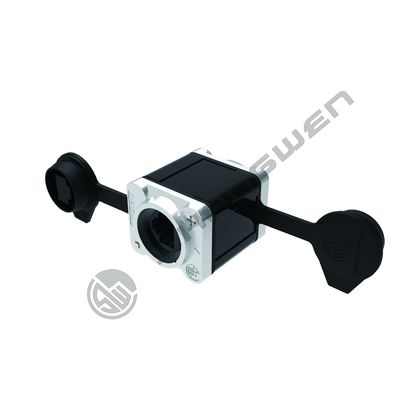

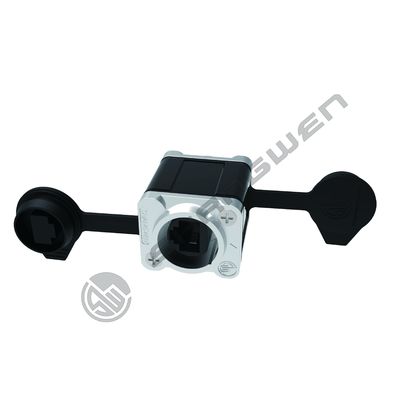

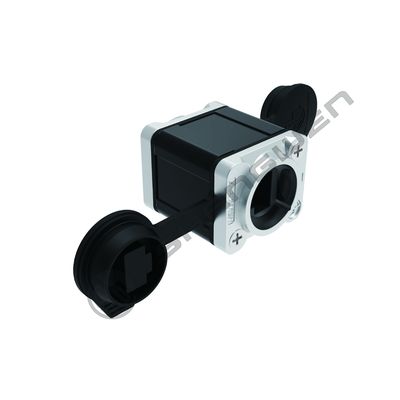

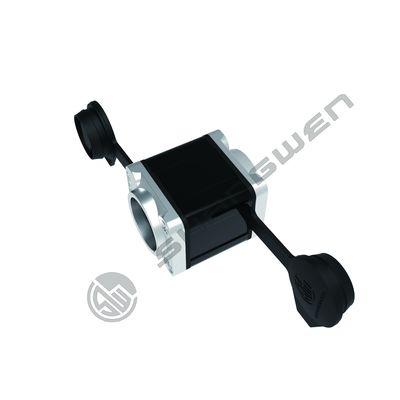

IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments

  • IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments
  • IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments
  • IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments
  • IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments
Place of Origin Guangdong, China
Nombre de la marca SHANGWEN
Model Number SW8X3-ND
Minimum Order Quantity 5 pieces
Precio CN¥40.75/pieces

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
IP level ip65 Type Adapter
Gender Female Industrial electronics accessories
Resaltar

Ethernet Network RJ45 Connector

,

Outdoor Environments RJ45 Connector

,

IP65 Waterproof RJ45 Connector
Deja un mensaje
Descripción de producto
Products Description
etherCON feedthrough coupler for cable to cable extensions

For the signal conversion problem encountered in the signal transmission, this product can ensure the stable connection of the signal in the temporary state.
For various conversion problems encountered in current transmission, this product can ensure stable connection of thecircuit in the temporary state.
Omit the traditional docking connector, meet the requirements of the cross connection mode. Protection level can reach lP65 with the waterproof gasket.
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 0
SW8X3-ND
Outdoor signal adapter connector
☑ Versatile with SW8MC-A-2N or any standard RJ45 connector
☑ The traditional mating connector is omitted and the cross-connection method is satisfied
☑ For the signal conversion problems encountered in signal transmission, this product can ensure the stable connection of the signal in a temporary state
☑ Complies with TIA/EIA568 BandISO/IEC11801 transmission standard for CAT5e
* RJ45 feedthrough coupler for linking cables
* Shorter length and more exquisite compact design
* Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standard
* Very lightweight, fast and stable signal transmission
* Supports up to 100 MHz or 1 Gigabit network speeds
* Zinc diecast housing
* Gold-plated contacts
* Latch lock
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 1
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 2
1.Product parameters
Connection Type
Coupler (adapter)
Gender
Female
2.Electrical parameters
Contact resistance
< 10 mΩ
Dielectric strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation resistance
> 0.5 GΩ
Rated current per contact
1,5 A
Rated voltage
< 50 V
Standards compliant
TIA/EIA 586B, IEC11801
3.Mechanical parameters
Insertion force
≤ 20 N
Pull out force
≤ 20 N
Service life
> 1000 mating cycles
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Bronze (CuSn8)
Contact plating
0.2 µm Au over Ni plating
Inner core
PBTP 15 % GR
Shell
AlMgSi 0.5, black plated
Clamping sleeve
CuZn35Pb2, tinned
Flammability
UL 94 HB
Temperature range
-30 °C to +80 °C
5.Assembly reference
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 3
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 4
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 5
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 6
Application area
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 7
Company Information
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 8
Patent & Certification
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 9
Exhibition activities
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 10
Packaging reference
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 11
Payment and logistics
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 12
FAQ
IP65 Waterproof Female RJ45 Connector Ethernet Network Cat5e Coupler Adapter for Power Connection in Outdoor Environments 13
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
