Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications

  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
  • Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Lugar de origen Guangdong, China
Nombre de la marca SHANGWEN
Número de modelo SWM5X-2ZFS-KN (plateado), SWM5X-2ZFB-KN (negro)
Cantidad de orden mínima 10 piezas
Precio $1.29-1.36 / piece

Éntreme en contacto con gratis las muestras y los vales.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Solicitud Fuerza Material de contacto Aleación de cobre
Corriente nominal 7.5a Género Femenino
Material de alojamiento Aleación de zinc Nivel IP IP65
Forma IP65 Tipo Conector XLR
Electrónica industrial Accesorios
Resaltar

Waterproof 5-Pin XLR Connector

,

Outdoor Audio XLR Connector

,

Panel Mount XLR Connector
Deja un mensaje
Descripción de producto
Products Description

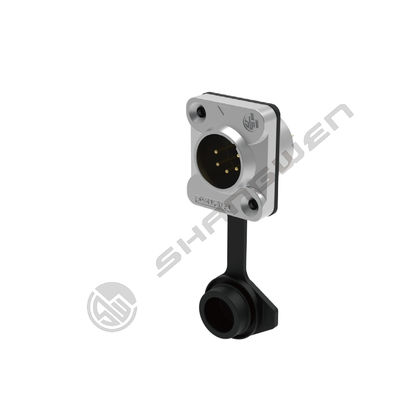

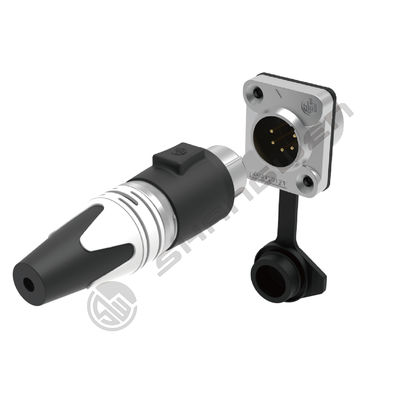

Waterproof XLR connector-5 pin male socket
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 0

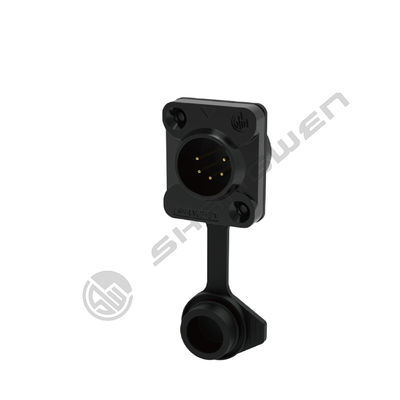

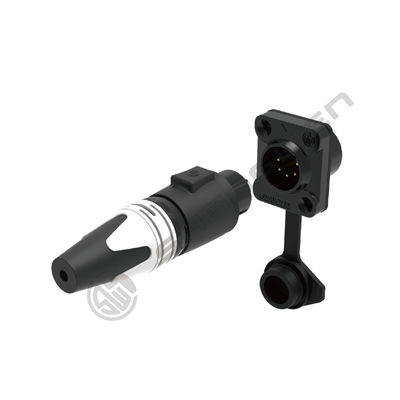

Model：SWF5X-2ZFS-KN  (Black)
               SWF5X-2ZFS-KN (Silver)
☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 2
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 4
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 6
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 8
1.Product parameters
Connection Type
XLR
Gender
male
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃

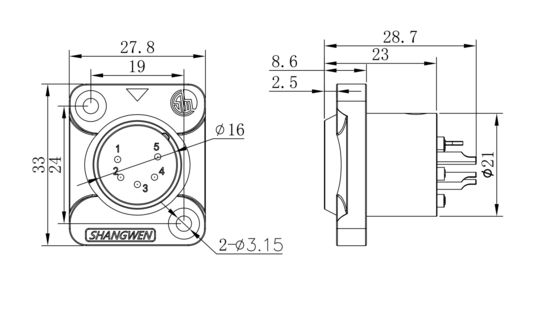

5.Size reference (unit /mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 10
Waterproof rubber(Unit:mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 12
Application area
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 14
Company Information
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 16
Patent & Certification
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 18
Exhibition activities
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 20
Packaging reference
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 22
Payment and logistics
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 24
FAQ
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
